"Jeep Wrangler TJ Bumper Hoop Brush Guard "



Details:

  • The Design stands tall and strong on the front of your Jeep.
  • Adds Great looks and protection to your Grille.
  • Bolts right to your Factory Bumper / Tow hook mounts.
  • The Hoop is made from 1.75 inch DOM .120 wall tube. This is the same tube "Race Cars and Custom Buggies" are built from. It has a strength of 80,000 psi. (pounds per square inch) It may be over kill to build the hoop out of this material, but it will be strong enough.
  • Painted Black, Primer also available if you want to customize the color. This black paint is very easy to touch up if scratched.
  • Strong Sturdy Design to take punishment and still look good.

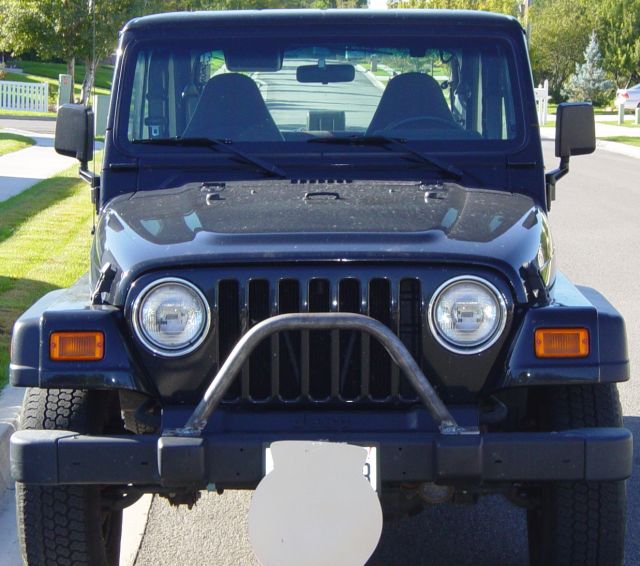

  • Sizes The bolt holes are 30.75 inches wide at the bottom and the Hoop is about 14 inches wide and about 12 inches tall. As you can see the height is about in the middle of your headlights.

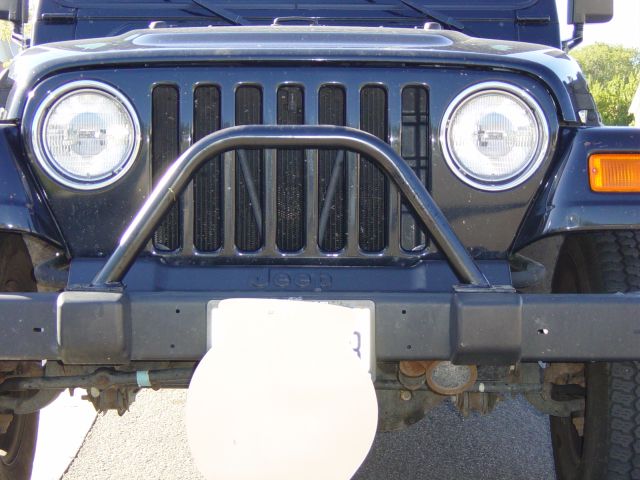

  • Shown here in a closer view.

    Size:
    The Hoop is 29 inches wide at the base before being welded to the plates. When Welded the distance from Center to Center of the mounting holes is 30.75 inches center to center. The overall width at the base is 33 inches, the inside distance between the plates is 24.5 inches. For a TJ the plates are 3 x 4 x .25 inches 3 inches deep 4 inches wide. For a YJ they are 2 x 4 x .25.
    When sitting on the ground the top of the hoop is 12 inches from the floor, the width of the hoop at the top is about 14 inches, the length of each side of the hoop is about 14 inches.

    Installation:
    Installation is easy you will need to remove the top bumper bolts, set the hoop on the top of the bumper and replace them. They are a Torx 55 bolt head. This is available at any parts store. I got a Torx 55 at Autozone because of the lifetime warranty. The old bumper bolts can be tough to remove, so in some cases plan on using a big breaker bar, with a cheater pipe over the handle.
    I would also recommend that you get a good set of 10,000 lbs tow hooks at autozone and put them on at the same time. Place the Hoop on top of the factory bumper, and then the tow Hooks. Then put the bolts in, make sure to only put them in loosely and get all 4 of them started and turned 1-3 turns before tightening any of them down. If you have bumped or bent your bumper at all this process maybe a bit tricky. But it shouldn't be any problem.

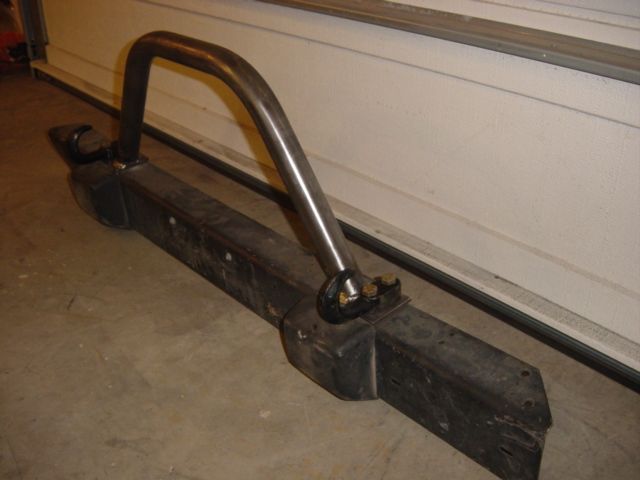

    Show here are a good strong set of 10,000 lbs hooks.

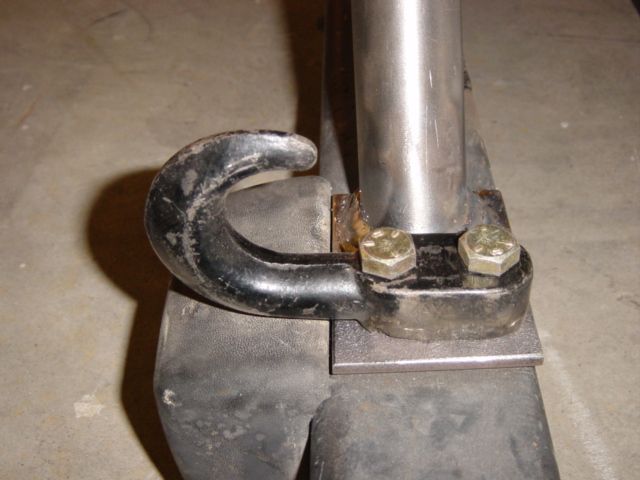

    This is a side view with the hooks on top of the hoop plate.

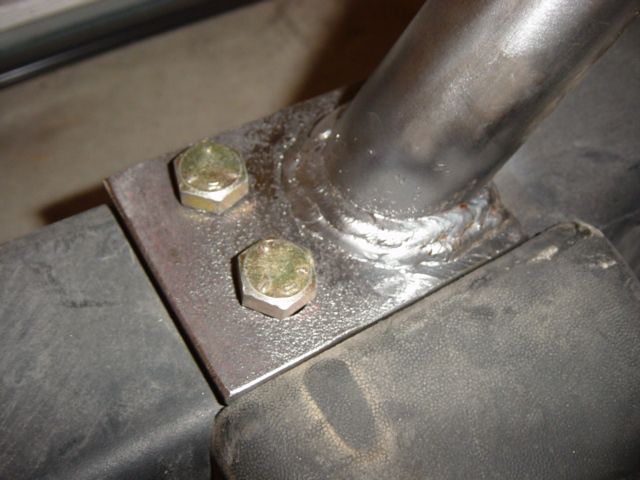

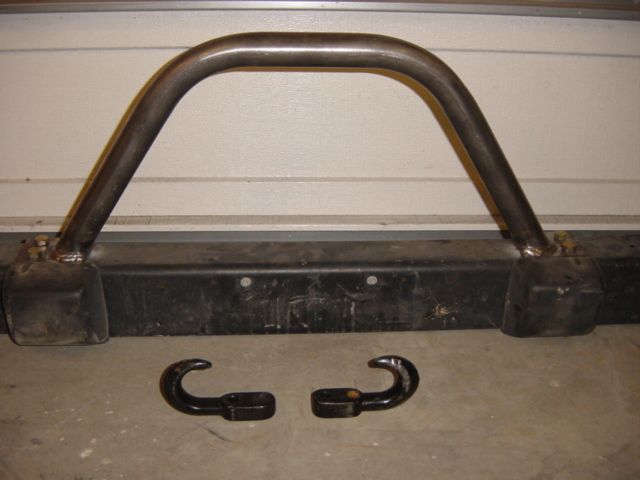

    This view show the plate installed on the bumper without Hooks.

    Another shot without the hooks.
    Once you get all the bolts started tighten each of them up a little bit until they are all tight.

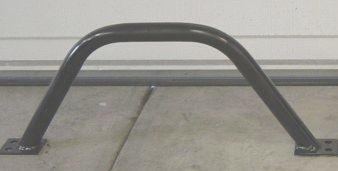

    The standard width hoop

    If your Jeep has the Factory Fog Light and Factory Tow Hooks Then this is the Hoop that will fit your Jeep.
    Can I get this hoop without the flat welded on plates?

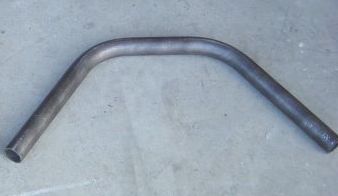

    Yes I have them available as just the Hoop without the plates. This is a weld on hoop. You will need to weld it on to your stock or custom bumper.

    Guarantee:


    If you are not happy with and item or it doesn't fit or meet you needs. You can return it for a full refund. I stand behind my products and want you to be happy with your purchase.

    Payment Information:

    I accept the following payment methods:
    PayPal, Cashiers Checks, or Money Order
    The items will be shipped the day payment is received. I will pack them in a boxes.

    Use PAYPAL FOR FASTER SHIPPING.

    Shipping:


    Shipment via USPS or UPS. Items will ship within 24 hours of payment.
    These hoops in a box weigh between 12-14 pounds. Shipping is 18.00 for one item. If you are interested in multiple Items, please contact me and I will give you an estimate. I have shipped many things and never had any problems, please bid with confidence.

    Contact info:

    Please contact me with any questions or comments:

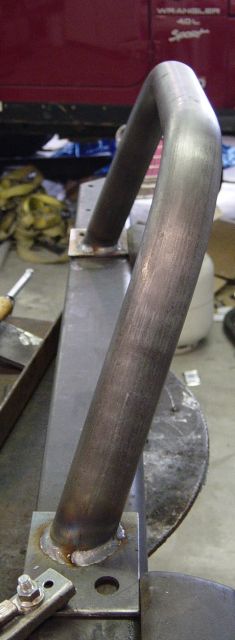

    This shows a close up of the hoop and lean on Hoop. It leans about 3 inch forward from straight up.

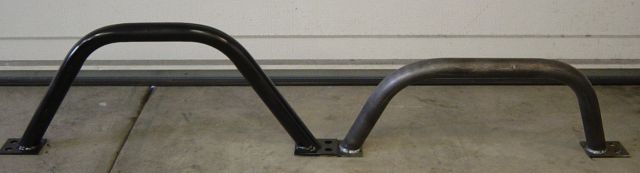

    This shows a standard hoop on the left and the custom CJ-7 hoop on the right.
  • Purchase Prices:


    You can buy these hoops using your paypal account.
    A complete "Leaner", Painted Hoop, to fit a TJ: $139.99
    Shipping: $18.00
    A complete, Painted Hoop, to fit a TJ: $139.99
    Shipping: $18.00
    A complete, Painted Hoop to Fit a YJ: 139.99
    Shipping: $18.00

    A complete, NOT Painted Hoop, for Fit a TJ: $129.99
    Shipping: $18.00

    A complete, NOT Painted Hoop to Fit a YJ: $129.99
    Shipping: $18.00

    A Weld-on, unpainted Hoop to fit any bumper: $99.99
    Shipping: $18.00
